Single Lock Hyperbaric Chambers

Single Lock

The SL range of Hyperbaric Oxygen Treatment Facilities combine the cost effectiveness of off-the-shelf engineering components with the requirements of a moderately sized medical clinic

Features

  • Full sized 820mm wide x 1920mm high sliding doors with automatic trough covers to enable trolleys and wheelchairs to be loaded smoothly.
  • An environmental control system keeps the temperature and humidity at comfortable levels while the patients breathe oxygen though hoods or BIBS.
  • The easy opening Fink Engineering 350mm² x 500mm long medical lock is large enough to accommodate bedpans resuscitators and ventilators.
  • Unique push button life support system which makes chamber operation safe and simple.
  • Large diameter TV port and 4 channel entertainment system provides additional comfort for the patients.
  • Meets the requirements of AS1210, ASME PVHO-1 and NFPA 99. ASME certification to Section VIII Division 1 is optionally avaliable as well.

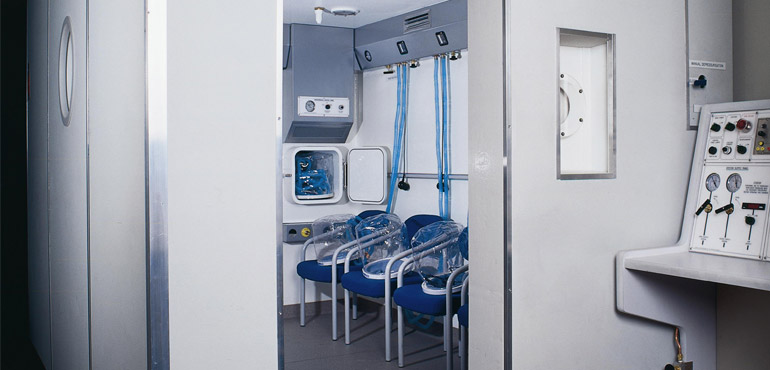

A Fink Single lock facility has been installed in the Vaucluse hospital, Melbourne
